Three-Axis Hall Effect Magnetometer THM1176

Field intensity from nanoteslas to 20T
Comprehensive family of 3-axis sensors
0.5% accuracy

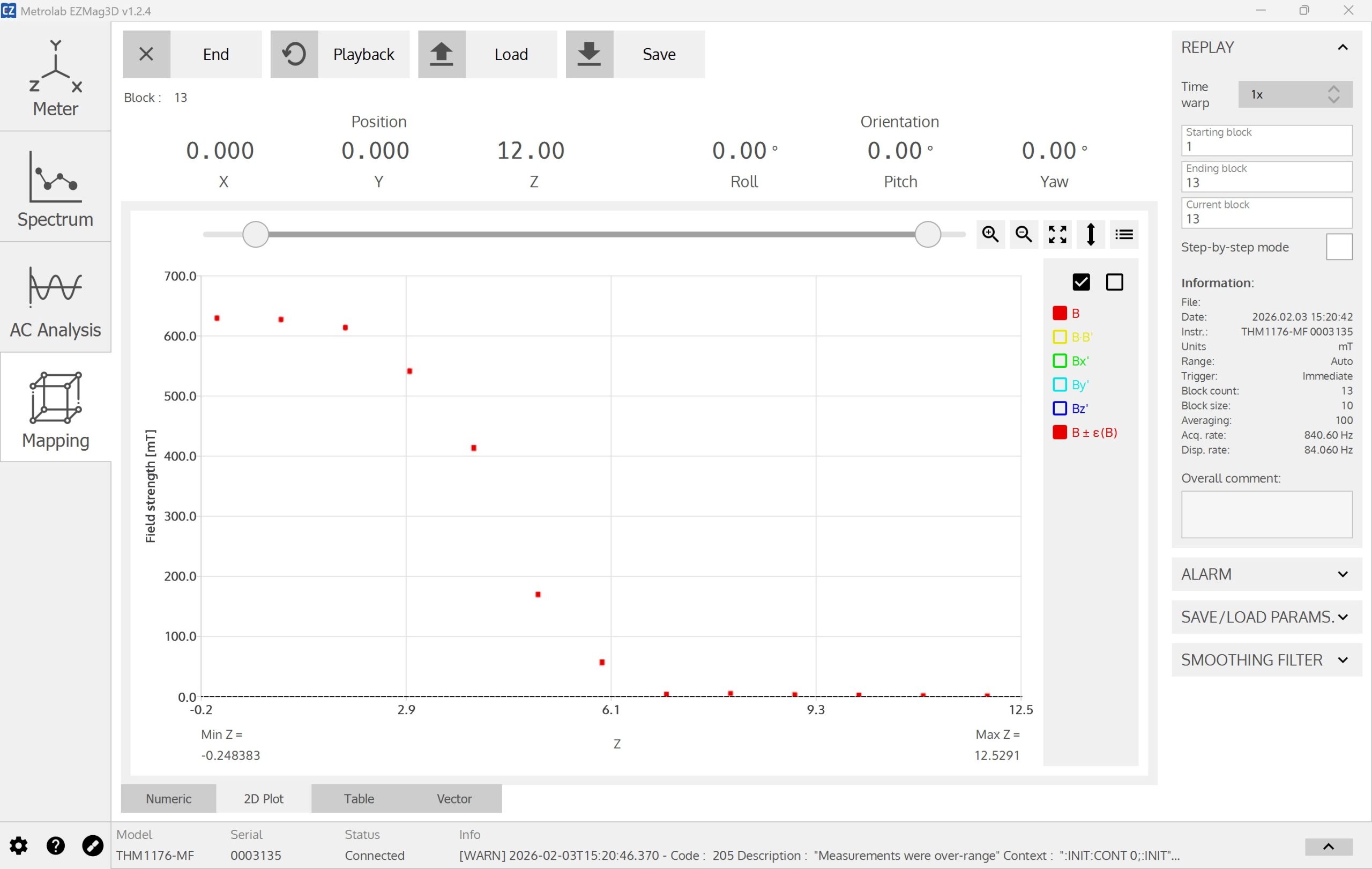

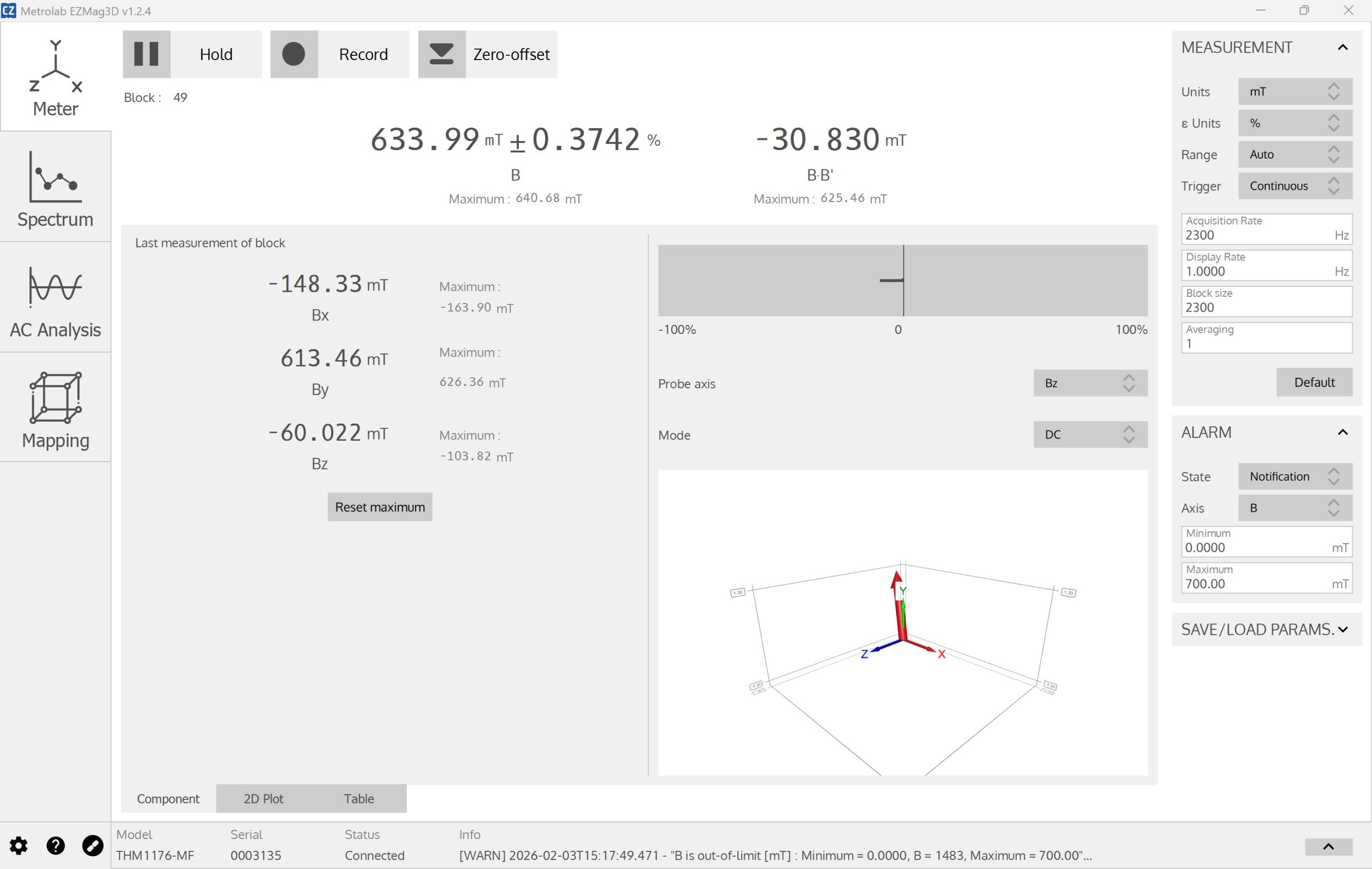

Dedicated software
DC or AC magnetic fields up to 8 kHz
3-axis calibration
Request a quote

Features

+ Simultaneous measurement of Bx, By, and Bz

+ Robust and easy to use

+ Application Programming Interfaces

+ Range from µT to 3 T

+ Measures DC or AC fields up to 8 kHz

+ 0.5% accuracy up to 1.5 T

+ ISO17025 certified calibration

+ Temperature drift and non-linearity correction

+ Powered via USB

Resources

Brochure
Datasheet
User manual
All other resources

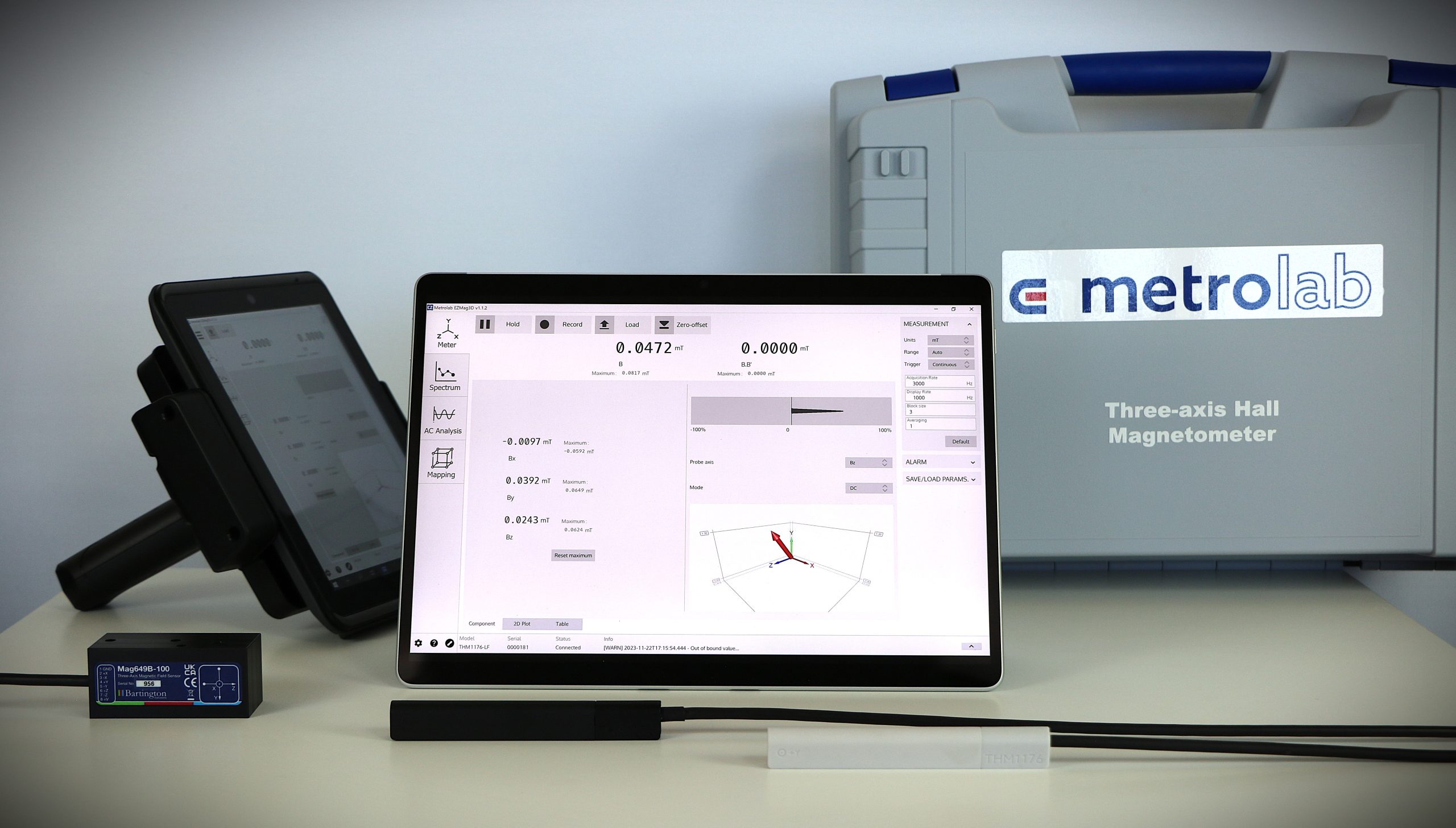

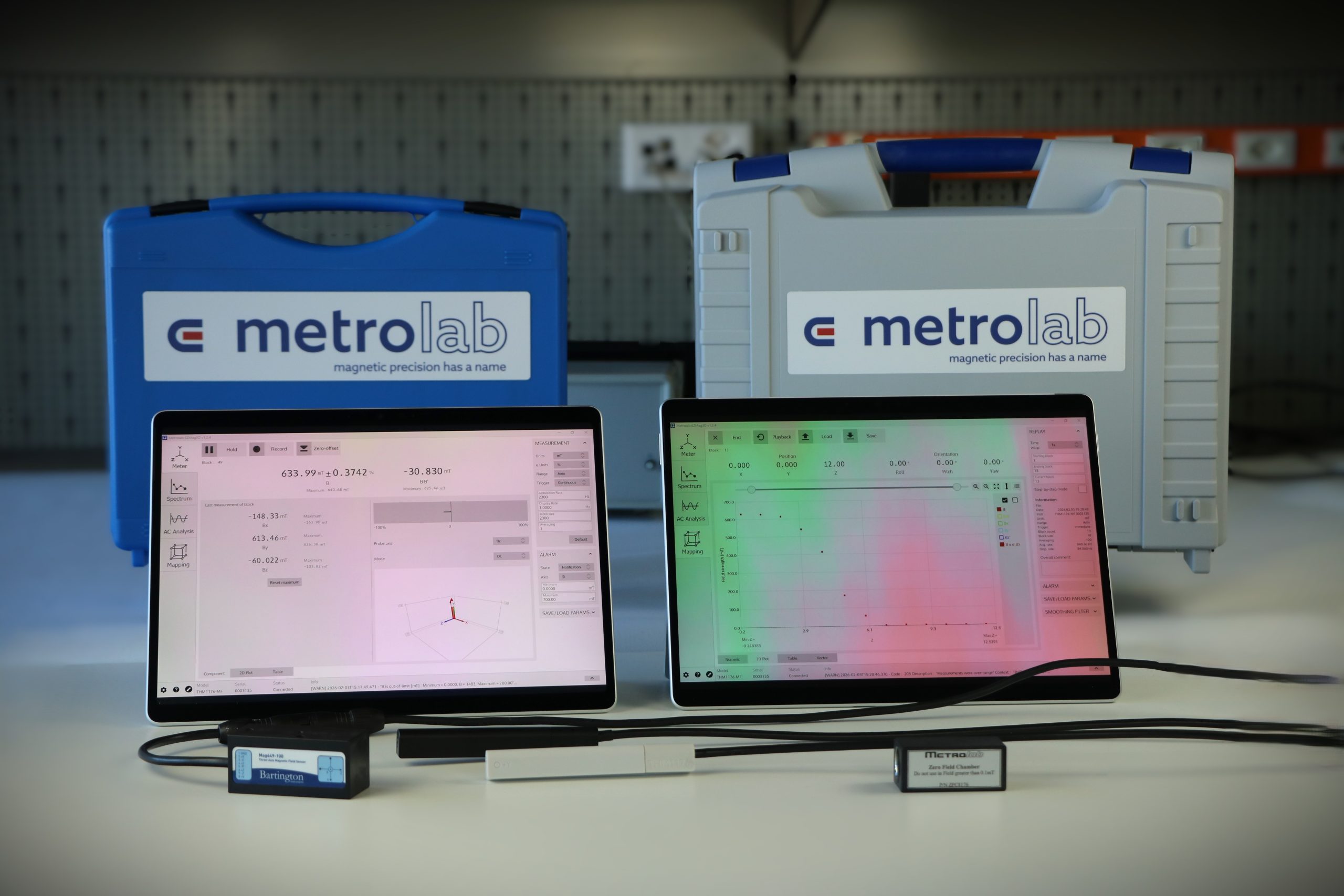

The only family of portable 3-axis Hall effect magnetometers. The THM1176 family combines the performance of a professional Hall instrument with the ease of use of a consumer-grade USB device. Its range extends from µT to 3 T, from DC to 8 kHz, with an accuracy of ±0.5% up to 1.5 T and ±1% up to 3 T. It simultaneously measures the three axes of the magnetic field, allowing for an accurate reading of field intensity, regardless of how the probe is held. The entire instrument has been reduced to a cable that can be plugged directly into your PC or battery-powered handheld computer.

Discover our accessories.

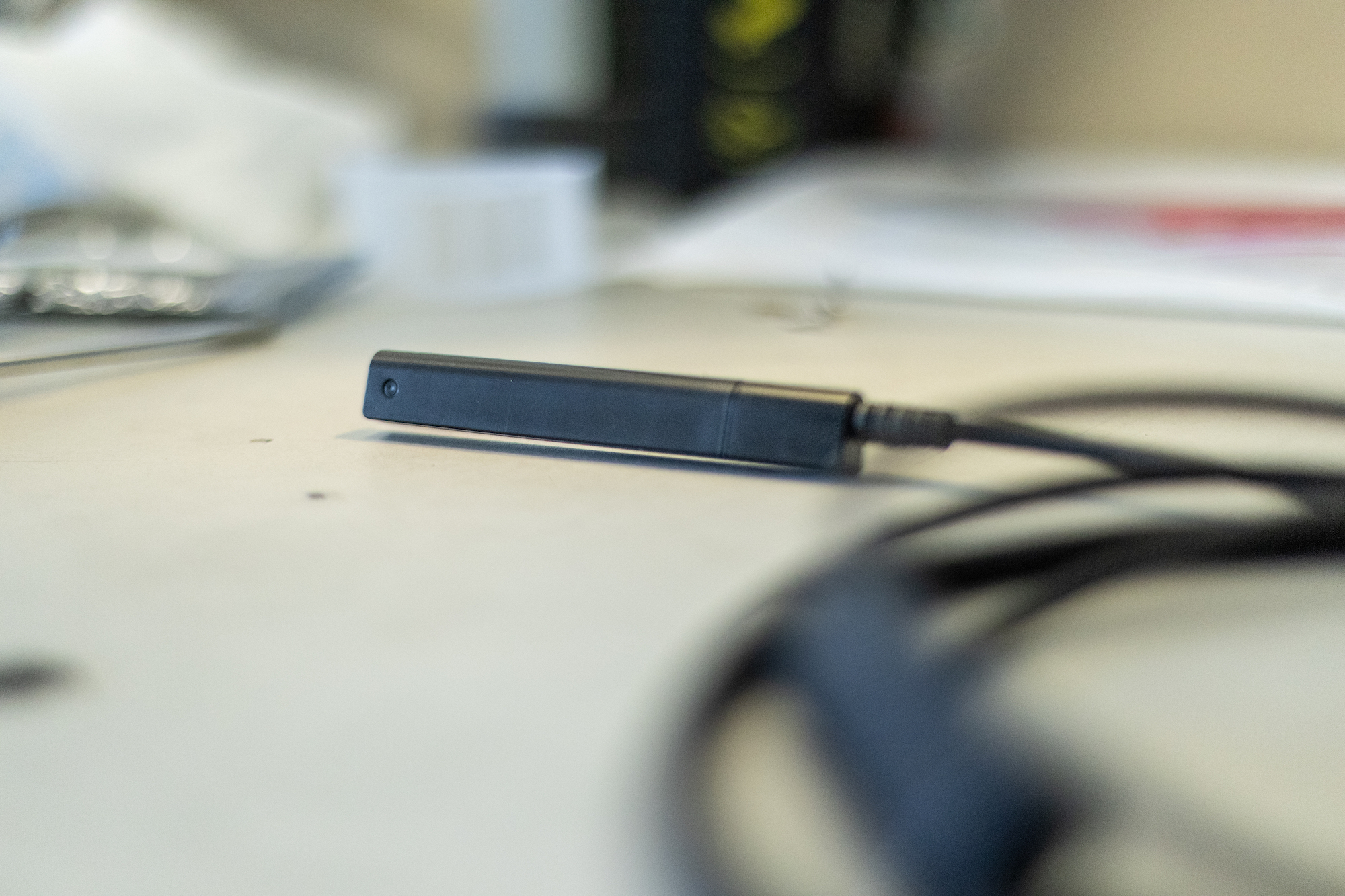

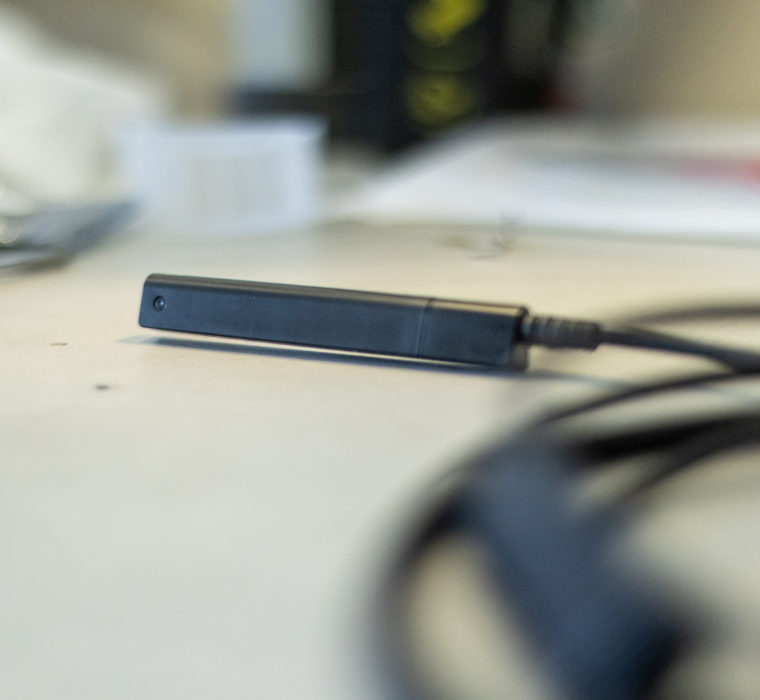

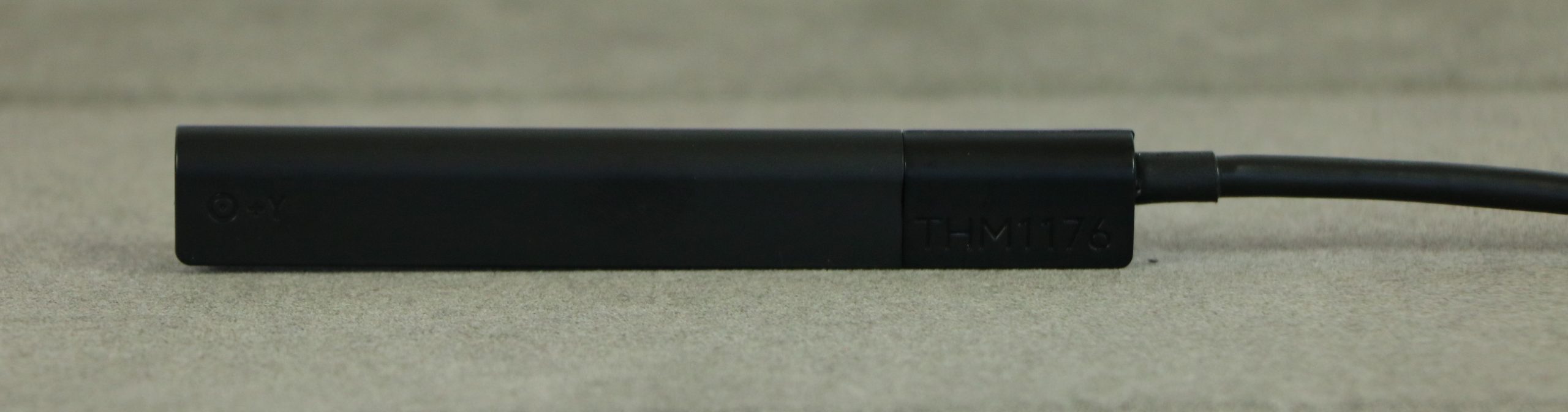

THM1176-MF

The most generic, the THM1176-MF

  • 4 measurement ranges from 0.1 T to 3.0 T
  • Accuracy up to 50 µT (0.5 Gauss) or ±0.5% up to 1.5 T
  • Resolution 2 µT without averaging
  • Measurement volume 200 µm x 200 µm x 5 µm
  • Available with 3 m or 6 m cable

For measuring fringe fields, the THM1176-LF

  • Measurement range 8 mT
  • Accuracy of ±20 µT
  • Resolution of ±2 µT
  • Active volume of 6×3.4×3 mm
  • Available with 3 m or 6 m cable.

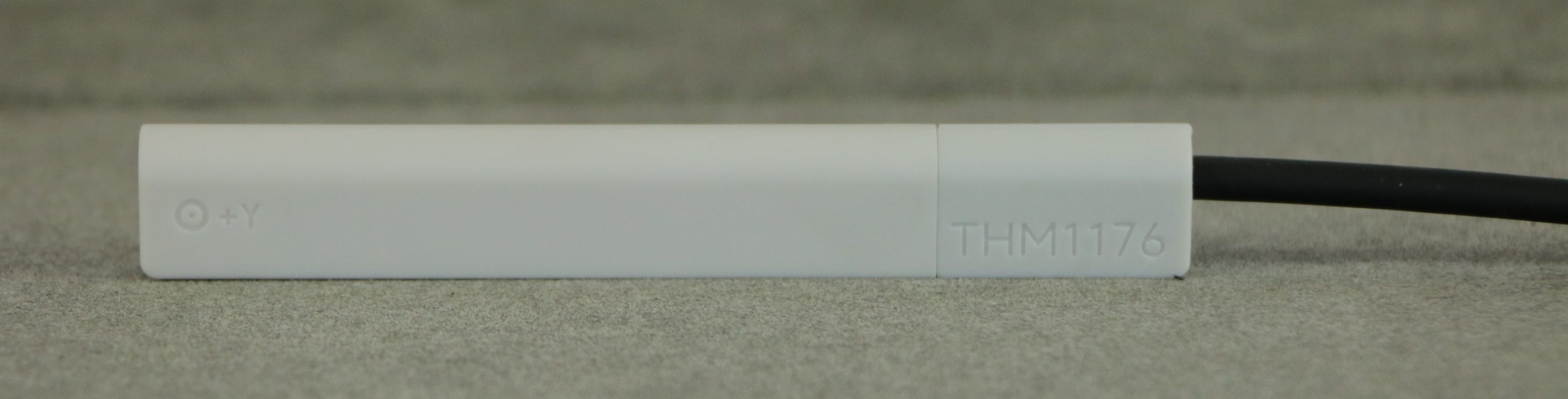

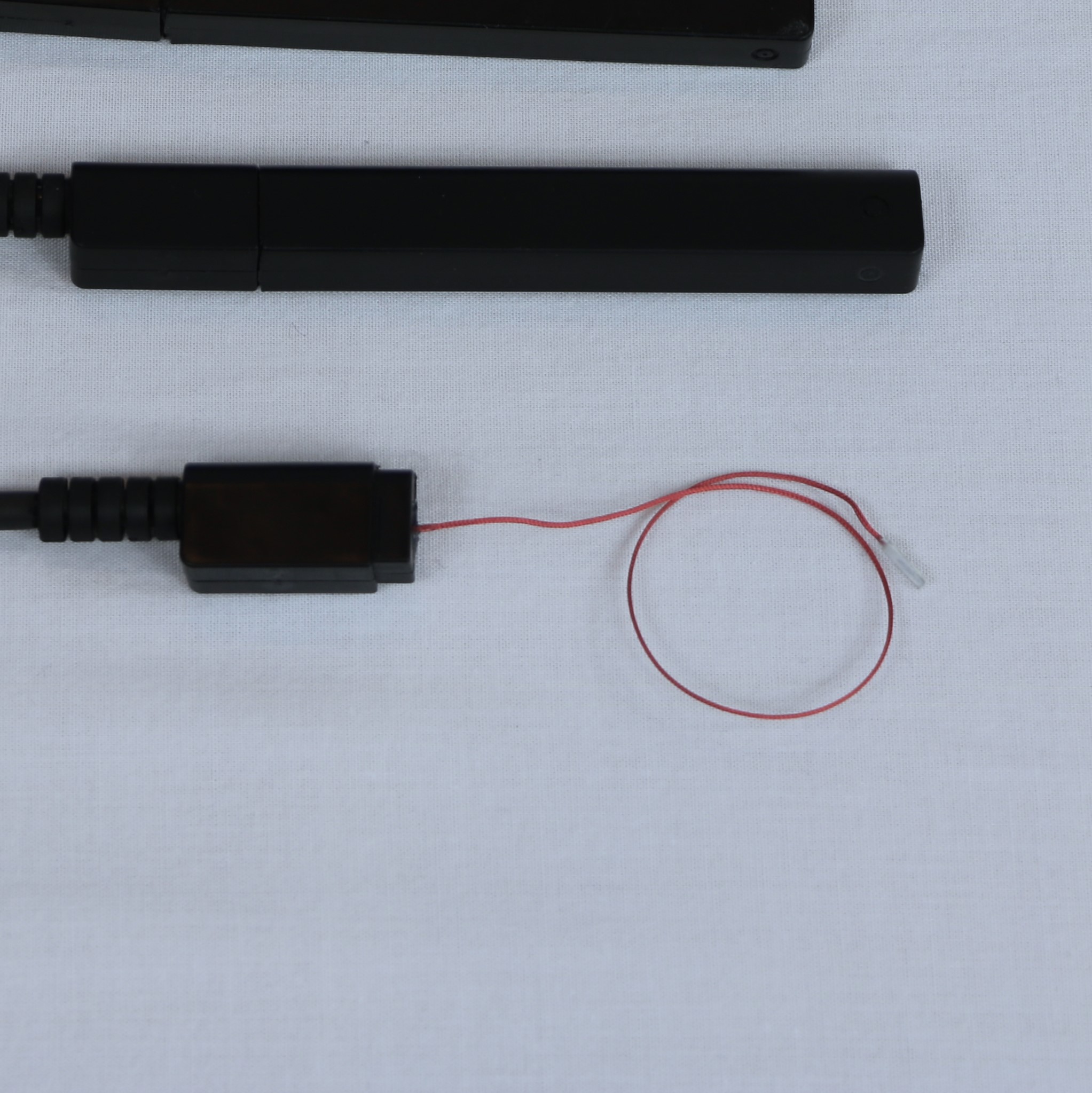

For sub-millimeter spaces, the THM1176-HFC

  • Probe dimensions 0.5 mm x 2 mm x 42 mm
  • Measurement range up to 20 T
  • Calibration up to 1.5 T
  • Available with 3 m or 6 m cable.

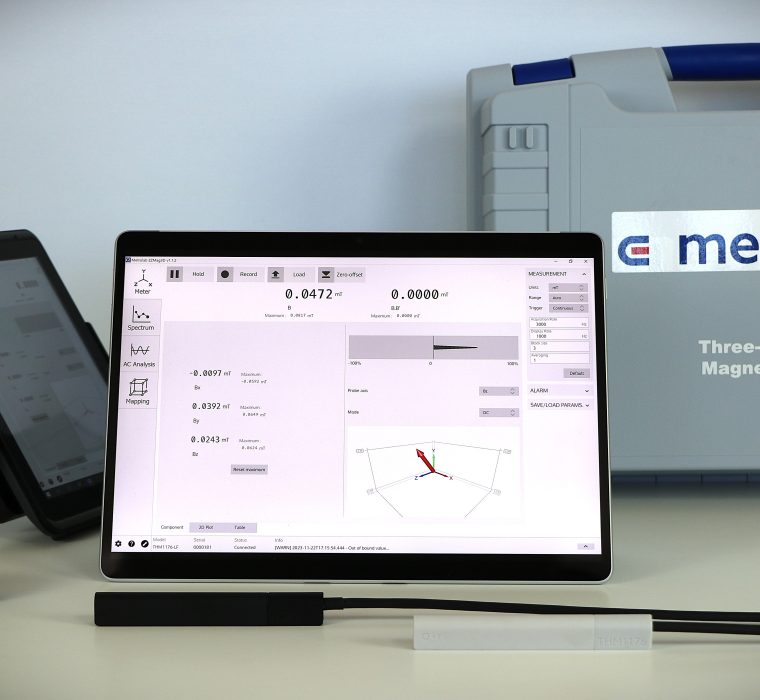

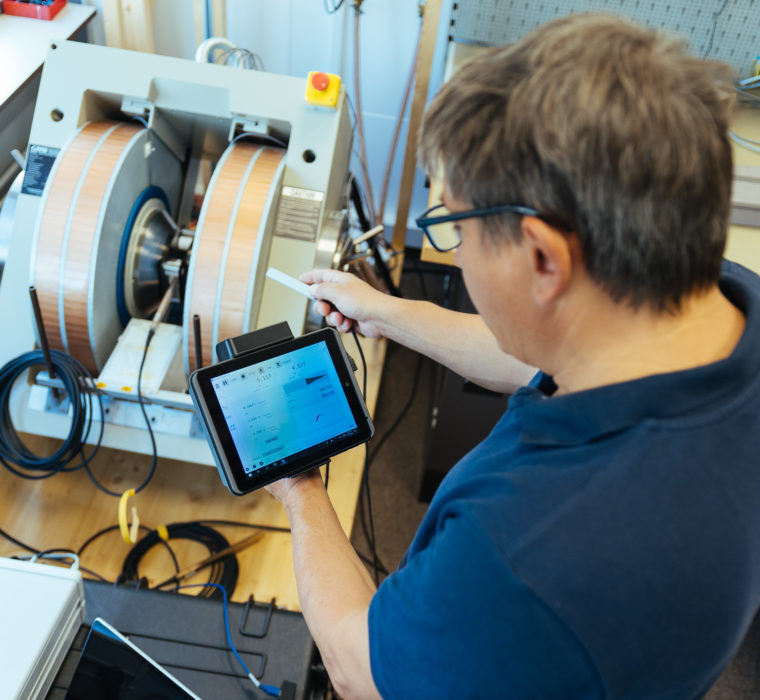

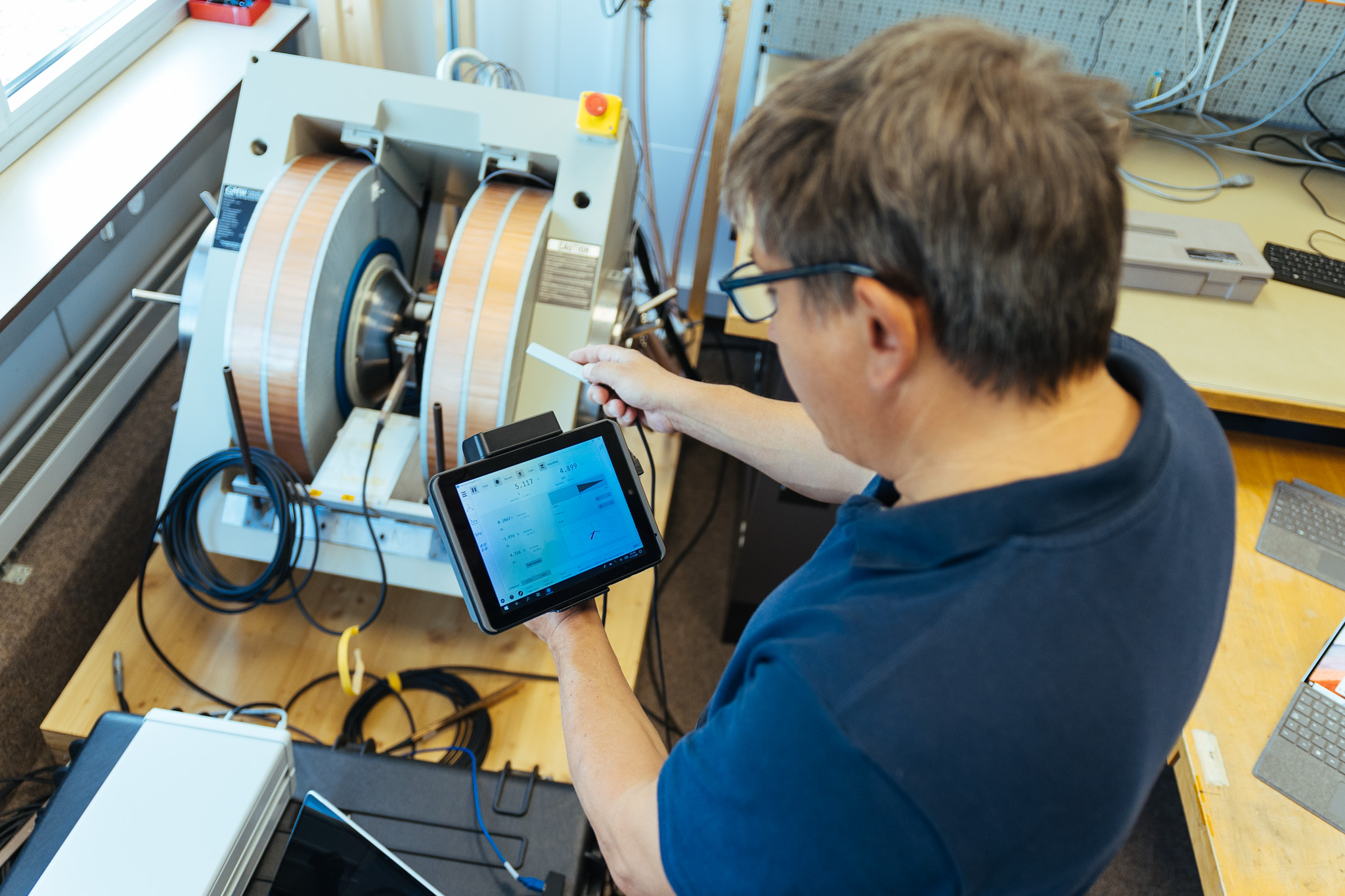

Tablet for total autonomy

  • Robust Windows 10 tablet
  • Pistol grip for industrial use
  • Includes a convenient transport case.
